Redefining Compact Intelligence
Compact in Size. Powerful in Capability.
High-precision laser ranging combined with AI-powered target recognition keeps distant targets clearly identified and under control.
Weighing only 115g, the compact payload delivers powerful sensing capabilities without compromising platform performance.
Capture stunning 4K video at 30fps, preserving both close-range and long-distance details with colorful and exceptional clarity.
Exceptional Performance
Equipped with a high-performance wide-angle camera and advanced image stabilization technology, the system delivers smooth, sharp, and detail-rich footage across a wide range of operating conditions. Whether tracking fast-moving targets or navigating complex environments, image quality remains consistently stable and professional.
AI Tracking. Locked On Target.
Powered by advanced AI recognition algorithms, the system can automatically detect, identify, and track people, vehicles, and other targets. Even during high-speed movement, it maintains stable target lock and continuously delivers clear, actionale imagery.
Easy Integration
Designed for rapid deployment across a variety of UAV platforms, the payload supports multiple communication protocols and integration.
Specifications
| Weight | 115g ±5g |
| Operating Voltage | 12V-18V |
| Axis Type | 3-Axis Mechanical Stabilization |
| Software Angle Limits |
Pitch: -90° to +30° Yaw: -120° to +120° |
| Mechanical Range |
Pitch: -135° to +45° Roll: -45° to +45° Yaw: -135° to +135° |
| Max Control Speed | 180°/s |
| Angular Vibration Range | ±0.005° |

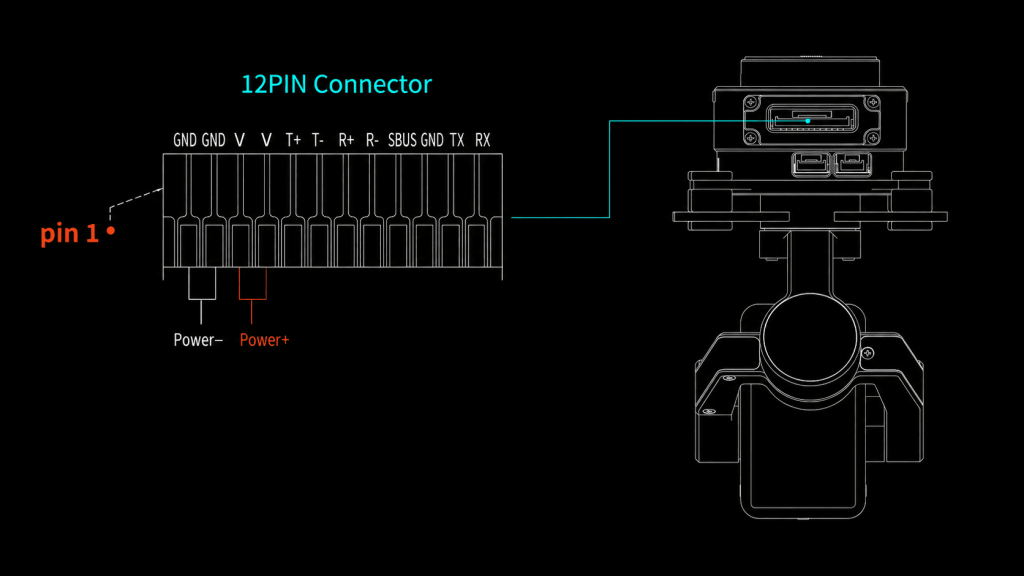

| Interfaces | Ethernet / Serial Port / SBUS |
| Gimbal Mode | Target Recognition, Auto Tracking |
| Operating Temperature | -40℃ ~ +65℃ |
| Communication Protocol | HEQ Proprietary Protocol |
| IP Rating | IP44 |
| Power Consumption | 7W |
| Hybrid Zoom | 40× |
| Visible Light Resolution | 4K (Wide-Angle) |
| TF Card Photo Format | JPG |
| TF Card Video Format | MP4 |
| Video Resolution | 4K @30fps |
| Encoding Format | H.264, H.265 |
| AI Recognition & Tracking | Supported |
| Sensor Size | 1/2.8" |
| Focal Length | 8mm |
| Effective Pixels | 8MP |
| Aperture | F1.6 |
| FOV | H:42.2° V:23.4° D:48.8° |
Softwares
- HEQ Ground Control App
Documents
- K8-V2 Gimbal Camera User Manual
I'd like to buy one, but I'm worried it might be difficult to use.
You can visit the HEQ YouTube channel to watch our G-Port gimbal tutorial series before making a purchase decision.
We also publish firmware updates, setup guides, and feature demonstrations on the channel to help users get the most out of their gimbals.
